Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided textile shuttle Tongue (with reed) wool textile machine shuttle accessories,It belongs to textile hardware accessories,The shuttle core is equipped with a weft tube (winding tube of winding machine) with an inner hole diameter of about 8mm,The length of the shuttle core is about 15cm and 16cm,The inner diameter of the round hole for fixing the shuttle shaft (wood shuttle post and nylon shuttle post) is 8mm and the width of the rectangular head is 9.5mm.

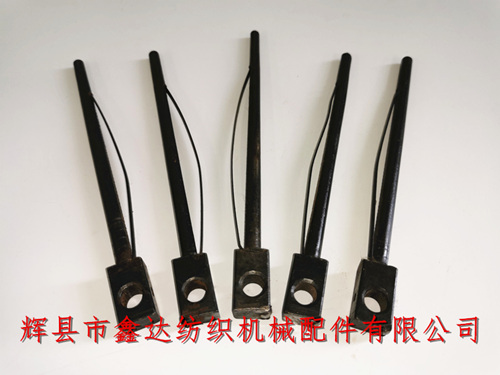

According to the length of the shuttle used, the length of the shuttle core rod is also different (see the figure above for details, with long rods in the middle and short rods on both sides). This kind of shuttle fitting - shuttle Tongue with reed is generally used for wool loom shuttle.
The figure above shows that the tail of the shuttle Tongue (also known as shuttle drill) of the shuttle part of the wool textile machine is inlaid with steel balls, which slide on the back plane of the shuttle bottom spring to realize the lifting and falling of the shuttle drill;The width of the reed on the shuttle core is 3.5mm, the diameter of the connection between the shuttle drill rod and the rectangular head is 7mm, and the diameter of the front end is 6mm.
Processing technology of textile hardware accessories - shuttle Tongue: it is processed and formed by mechanical forging. The rectangular head and shuttle drill rod are integrated with each other. The spring head is inserted into the inclined hole in the front of the shuttle core and bounces up to support the weft tube (to prevent the weft tube in the inner cavity of the shuttle from rotating during weaving).
