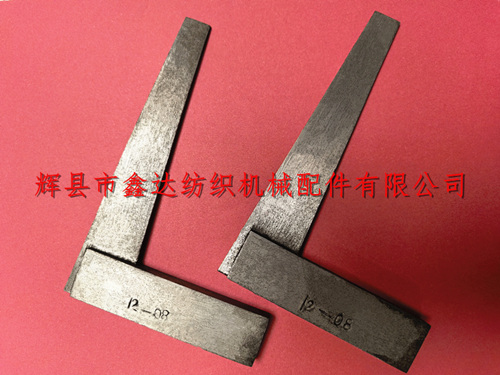

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511M-E-12-08 reed seat angle specification weaving machine maintenance equipment.1511M-E-12-08 Sley Angle Tools Repair Loom, 12-08 belongs to 1511 weaving machine tools, 1515 loom repair tools, maintenance specifications, GA615 reed seat(Sley) Angle specifications, old weaving machine specifications, textile tools, shuttle loom maintenance, and reed seat specifications; Its detailed parameters and dimensions: the length of the base rectangular block is 95.5mm (the total length of the bottom is 101mm), the thickness is 11.5mm, and the height is 25mm; the upper part is trapezoidal according to the standard, the width of the lower bottom surface is 28.5mm, the width of the upper plane is 14mm, and the total height is 126mm.
This specification is mainly used to measure the angle formed by the bottom plate of the shuttle box and the front side of the shuttle board and the reed frame wood. The inner angle of 12-08 is 86.5 ° (86 ° 30 '), and the outer angle is 93.5 ° (93 ° 30').
The above picture is the back view of the loom reed seat angle gauge (12-08). The material of gauge 12-08 is 45# steel, and the thickness of the lower clamp is 3mm. The weight of a single gauge is 275 grams. Textile hardware tools, loom maintenance equipment, and calibration workpieces can be used to ensure the normal operation of the loom and prevent unexpected situations during machine operation.
The minimum order quantity for 1511M-E-12-08 Reed Seat/Sley Angle Specification Weaving Machine Maintenance Equipment is 1 piece. If you need to purchase products such as 44 inch Weaving Machine Specification, 56 inch shuttle loom repair tools, wooden sley angle tools, Reed Seat Specification, 75 inch Maintenance Tools, etc., you can contact Mr. Yang from our company for consultation.
