Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the side support cover (extension cover) 3914 of the traditional 1515 old-fashioned weaving machine. The side support cover accessories of the loom are installed on the switch side of the loom. Each weaving machine uses one. The total length of the textile extension cover is 14.9 cm, the width is 4 cm, the height is 2 cm, the lower arc radius is 14 mm, the inner width of the groove is 6 mm, the groove depth is 2.6 mm, and the length is 38 mm. The 1515 side support cover is matched with 14 rings 10 ring copper thorn shaft.
The extension cover of textile machine 3914 (on-off side) is divided into left hand L and right hand R. the material is HT15-32 gray pig iron, which is connected and combined with 3913. The diameter of the upper screw hole is 11.4mm, and the inner length and width of the middle visual chute (as shown in the above figure) are 8.9cm and 11.5mm. It is mainly used to check the copper thorn shaft and cloth edge of the side support of the loom.

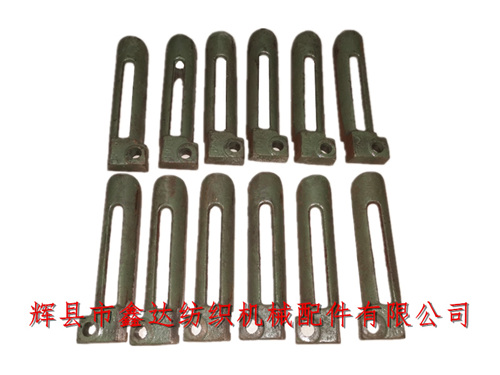

The above figure is the front and back view of the side support cover of the 3914 of the 1515 weaving machine. Side Support Cover (Extension Cover) 3914,It is photographed in kind. The left hand 3914 is installed on the left side of the left-hand loom. Similarly, the right hand 3914 is installed on the right side of the right-hand loom. The weight of a single extension cover is about 0.25 kg.
1515 loom is a double beam loom, including 56 inch, 63 inch, 72 inch and 75 inch door widths. The width of 100 inches (2.5 meters) and 110 inches (2.8 meters) are generally 1515k type. The wide door width of the machine needs to change the shuttle throwing device to realize the normal operation of the weaving machine, so the K-type design is generally adopted.
If domestic shuttle weaving manufacturers need to purchase textile side support cover, extension cover, loom side support and other accessories, please contact Mr. Yang of our company for details.Textile Machine Parts, We adhere to the business philosophy of "honest operation, pragmatic and enterprising" and wholeheartedly provide you with products and services.
