Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided k79 handle nylon bushing textile nylon Parts. K79 nylon sleeve of loom is installed at the tail of K00-1 or 3200-2D handle, which belongs to a nylon product in textile equipment. The total length of K79 nylon bushing is 49mm, the outer diameter is 32.3mm, the inner hole diameter is 25.3mm, and the appearance is beige. Each loom uses two k79 handle nylon bushings.

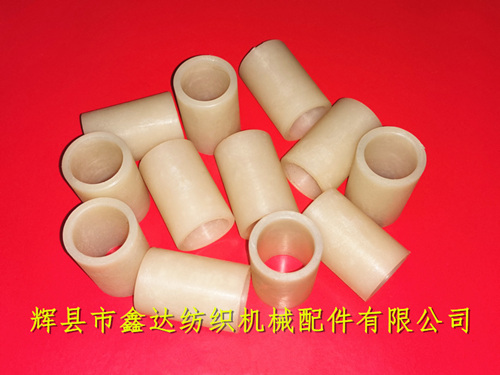

The shape of the loom handle bushing K79 is in a straight barrel shape. The above picture is a physical photo taken in strong light, and the color is different from the natural color (slightly white). K79 handle nylon sleeve is connected with K81 handle bolt, which can be applied to shuttle looms (1511, 1515, GA615, etc.) and rapier looms (GA743, GA747, GA788, GA799, etc.), and it is a general accessory of the loom.
K79 nylon bushing has no oil filling holes on the side and needs to be processed by itself after installation. Its package is 100 pieces per package, weighing about 1.25 kg (100 pieces). The reinforced MC nylon material has good wear resistance, and the bushing wear should not exceed 0.4 mm. The length of the handle used in different door width looms is different, but the radius of the curved arm remains the same.
Textile nylon products include many kinds of nylon bushings, bearing shells, gears and other products, commonly used are A30, 3122, K77*78, A5 nylon rotor, F11 shuttle rotor, K5 reed clamp shaft sleeve, SJ29, SJ02, SJ77 and so on. Plastic accessories also belong to a kind of nylon. Special models and specifications of bushings can be customized in batches according to customer requirements.
If cotton mills and textile manufacturers in the textile industry need to purchase nylon bushings, K79 bushings, nylon accessories, nylon textile equipment and other products, please contact Mr. Yang of Xinda Textile accessories company for consultation! Our company is a supplier of K79 hand nylon bushing and 1511/1515 textile nylon accessories and equipment, and we are dedicated to providing good products and services to customers at home and abroad.
