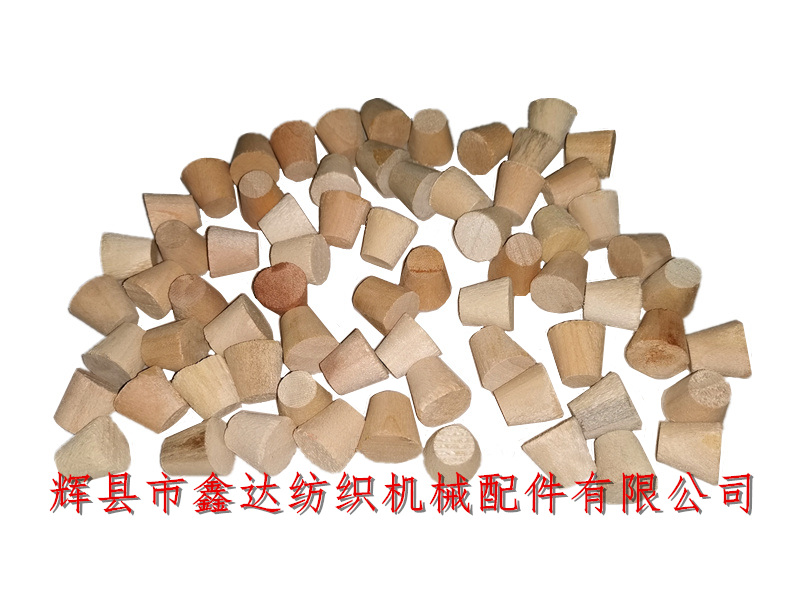

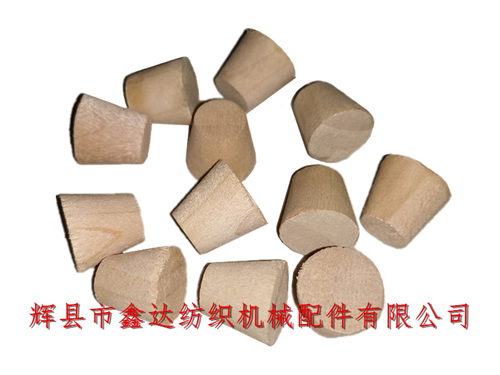

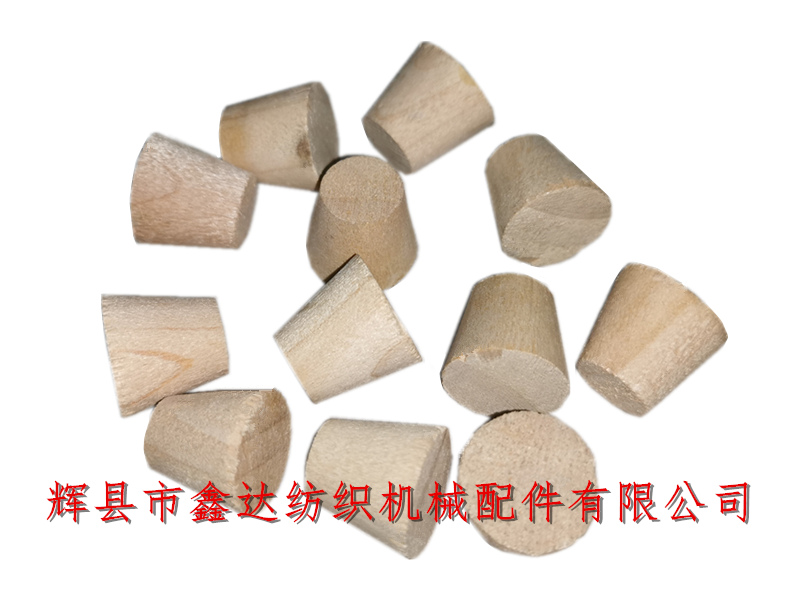

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile wood,loom pricking roller plug Q24. Textile wood plug Q24 is mainly used to fix the pricking iron sheet on the pricking roller of the loom. It is a textile wood accessory. It is processed with uncompressed raw pine. It has a round platform shape, with an upper diameter of 12mm, a bottom diameter of 18mm and a height of 16.5mm. The use quantity of each loom is determined according to the door width (the length of pricking roller).
The number of pricking roller wooden plugs used in 1511 44 inch loom is 19 pcs, which are installed in the small hole on the surface of L23 pricking roller and used to cooperate with shoe nails to fix the spiral pricking iron sheet to prevent reverse phenomenon in the process of cloth rolling. The number of 1515 or GA615-56 inch looms is 23 pcs, the number of door width 1.5m looms is 25, and the number of 75 inch looms is 29 pcs, which are connected with 1515 type 3500-1 (or GA615-5100-1) pricking roller.

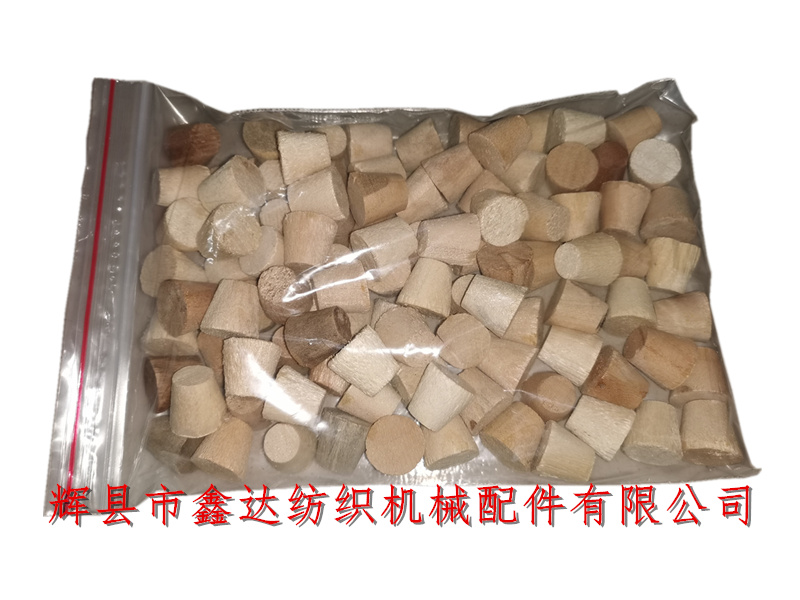

There are hundreds of types of textile wood accessories. Hundreds of wooden shuttles and various textile wood parts (involving various lengths of the loom door width) constitute the collection of wood parts of the shuttle textile machine. The packing method of the pricking roller plug of the loom is: self sealing bag, 100 pieces per bag, weighing about 0.18 kg.
If you need to purchase or purchase textile wood parts, loom plugs, pricking roller plugs and other loom accessories, please contact manager Yang of Xinda Textile machinery accessories for details!
