Huixian Xinda Textile machinery accessories provide wholesale processing of cowhide knot textile equipment all year round. Special cowhide knot (picker) products can be customized in batches according to customer requirements. Loom cowhide products are generally used as silk looms. Due to its own material, cow hide knot has good elasticity and low noise during impact or friction. The wholesale processing of cowhide knot is oriented to various textile silk mills.

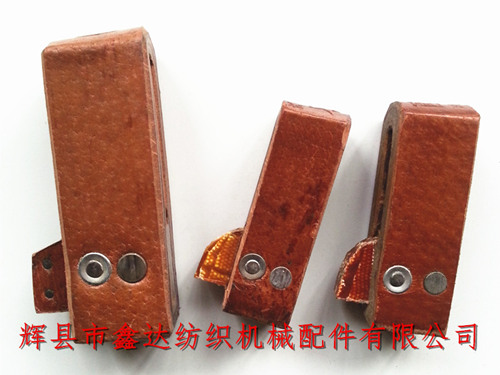

The leather knot on the left side of the figure above is used for cotton weaving machine. The leather knot is large, and the tongue of the cowhide knot is laminated with cowhide, which is generally divided into three layers; in the middle of the above picture, the cowhide knot used for silk loom is smaller, and the leather tongue is processed with rubber material; on the right side of the picture, the middle-sized cowhide knot is similar to the leather knot of silk loom when its height and width are increased.
The first one on the left in the picture above is No. 11 cowhide knot. The overall dimensions are: the total length is 79mm, the outer width is 24mm, the height is 25mm, the inner chute width is 8.5mm, and the chute length is 40mm.
The second on the left in the picture above is No.2 cowhide knot. The overall dimensions are: total length: 80mm, width: 26mm, height: 26.5mm, width: 9mm, length: 40mm.
On the right side of the above figure is a 50-3 "skin knot. The overall dimensions are: total length 84mm, width 25mm, height 25.5mm, inner chute width 8.7mm, chute length 42mm.
The function of cowhide knot: it carries out reciprocating shuttle throwing movement on the bottom plate of loom shuttle box, so it is also known as shuttle throwing knot. Its main function is to put and stop the shuttle, so as to ensure that the shuttle can fly out of the shuttle box smoothly or stay still after entering the shuttle box. The packing of cowhide knot is carton, generally 300 pieces / box (specific to the shape and size of cowhide knot). If you need to purchase textile cowhide knot products, please contact our company for details of order!
