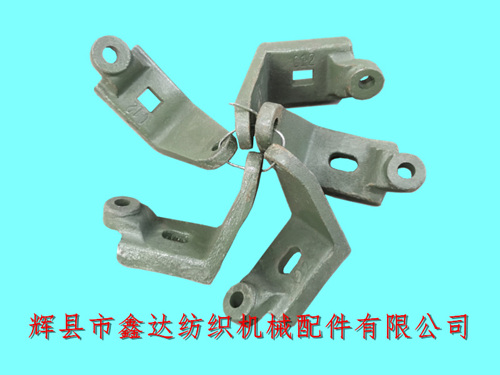

The adjustable Weight Lever Bracket C12 for the 44 inch weaving machine is provided by Huixian Xinda Textile Machinery Parts Co., Ltd. 1511-C12 is a component of the weaving machine tension adjustment device, which is used for both the left and right mobile phones. The material of Loom Bracket For Adjusting Weight Lever C12 is gray pig iron HT15-33, and a rectangular hole is inserted into the M12 * 45 semi-circular head square neck bolt ( Carriage Bolts ) and fixed on the wall panel P1 of the weaving machine. The smaller hole has an inner diameter of 10mm and is connected to the C35 brake rod spring with a hook. The other circular hole ( inner diameter 12mm ) is used to fix the C27 connecting rod core.
The above picture is a top view of the 1511 C12 adjustable heavy hammer rod hanging foot.
The above picture is a side view of the Adjusting Weight Lever. The center of the small circular hole is 82mm away from the plane of the bottom of the support foot,
The packaging of 1511-C12 Bracket For Adjusting Weight Lever is 10 pieces per string. If you need to purchase textile hammers, C12 Loom Bracket Of Adjusting Weight Lever, weaving machine hammers, 44 hammer hanging feet, old fabric machine accessories and other products, please contact Mr. Yang from "Xinda Textile Machinery Accessories" for consultation.
