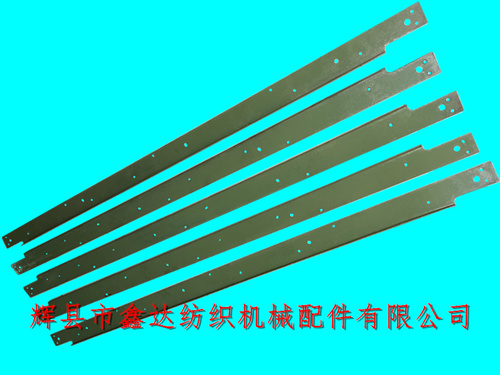

Huixian Xinda Textile Accessories Co., Ltd. provides 1515 Clamp For Reed Cap Of Loom 3225, 3225 textile cleat for reed cap of 1515 loom. The corresponding part number of 31201515 loom is 3225 (reed cap rear cleat), and the corresponding part number of GA615 loom is 3120. The textile cleat is made of A3 steel plate after bending and punching. The thickness of the steel plate is 3mm and the width is 67mm. The 3225 of 1515 is connected with the 3224 reed cap, and the 3120 of GA615 is installed on the reed cap 3121.
The length of the clamp behind the reed cap used for 56 inch looms is 1604mm, the length of the clamp behind the reed cap used for 63 inch looms is 1778mm, and the length of the clamp behind the reed cap used for 75 inch looms is 2083mm. The large holes on both sides of the 1515 / GA615 rear clamp are used to penetrate the reed cap and fix it on the foot of the reed base. The other small holes are mainly used to fix the rear clamp and the reed cap together and fix the anti flying shuttle base.
The installation requirements of the rear clamp 3225 for the reed cap of 1515 loom and the textile clamp 3120 are as follows: the height of the front clamp (3226) is (1.6 + 0.2) mm, and the front and rear clearance is 3mm (check with the fixed gauge and feeler gauge of the loom, and adjust the positioning wood 3227). The reed shall enter and exit the reed cap smoothly without any obstruction, and the reed shall have a movement of no less than 45 ° backward in the reed cap.
The 3120 / 3225 rear clamp needs to be fixed on the back of the reed cap of the loom with countersunk wood screws during installation. The bending part and the front clamp 3226 fix the upper beam of the reed. The number of rear clamps of reed cap used by different types and specifications of looms is 1, and the weight of a single 56 inch rear clamp is about 2.36 kg.
The rear iron 3225 for the reed cap of 1515 loom and the textile iron 3120 are packed in woven bags, 10 for each bundle. If you need to purchase 1515 loom reed cap, GA615 rear iron, 56 inch iron, 75 inch shuttle textile accessories, please contact Mr. Yang of Xinda Textile accessories for consultation.
