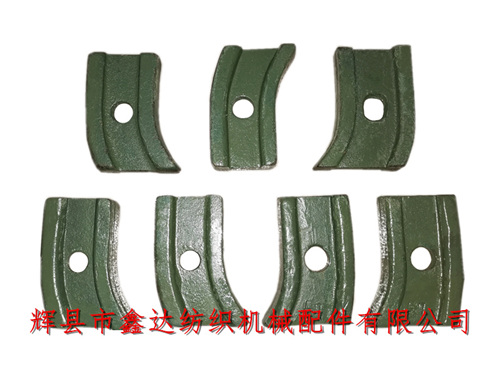

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides E7 Spacing Plate For Tappet Shaft Middle Bracket,sizing block for loom treadle shaft accessories. The overall dimensions of the product are: length 82mm, width 46mm, thickness 22mm on both sides, middle thickness 7.2mm, and the diameter of the middle screw hole is 15mm. E7 sizing block for loom treadle shaft accessories is connected with front and rear supports (4312, 4313 or P7). It is mainly used for fixing and supporting the supporting foot E5 in E5 treadle shaft. It belongs to loom accessories.
The installation quantity of textile shuttle loom accessories and tread plate shaft accessories - E7 sizing block is determined according to the door width and model of the machine. Generally, one narrow loom (1511 type) and two wide looms (1515, GA615, 1515k) are used. Shuttle loom parts-The number of front and rear supports of double tread plate loom is increased compared with that of single tread plate, so the number of sizing blocks of loom is also increased.
The E7 sizing block of textile machine accessories is not divided into left hand and right hand. The bending shape above is designed according to the arc of the front and rear support, which is convenient for E5 supporting foot to support E6 and tread plate shaft. The old loom accessory E7 is made of cast iron by sanding and does not need to be processed by machine tools. It is generally installed next to the lifting heald under the loom.
The package of E7 E7 Spacing Plate For Tappet Shaft Middle Bracket is 10 pieces / string, the weight of a single E7 is about 0.32kg, and the minimum order quantity is 10 pieces. If you need to buy Xinda pedal shaft, loom sizing block, loom accessories and other products, please contact Mr. Yang of our company for consultation.
